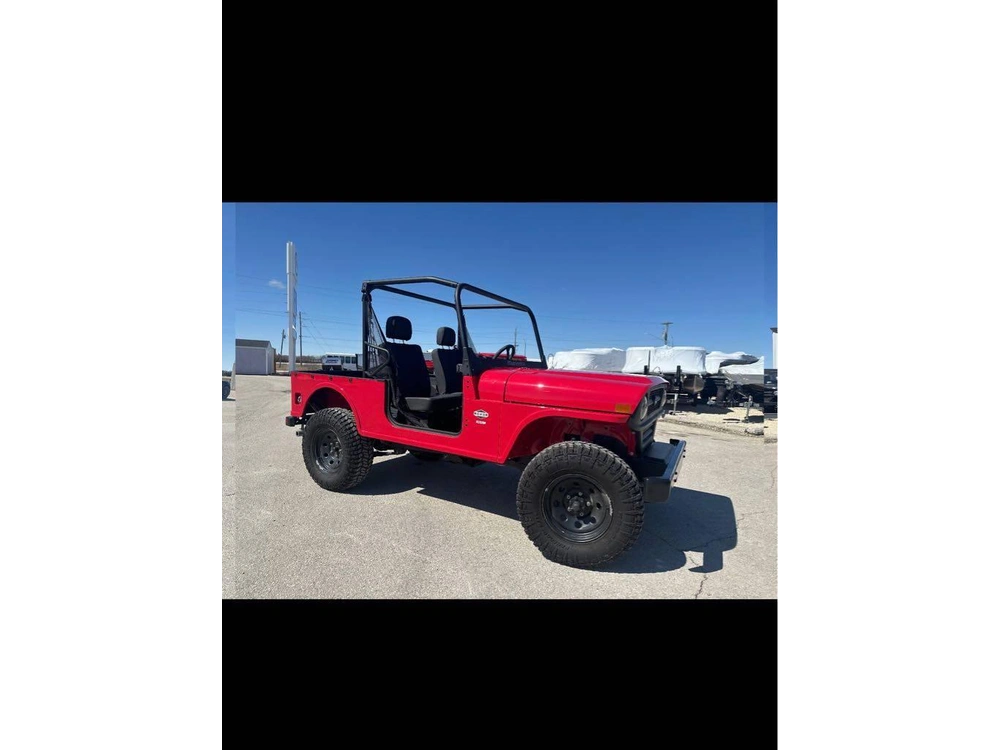

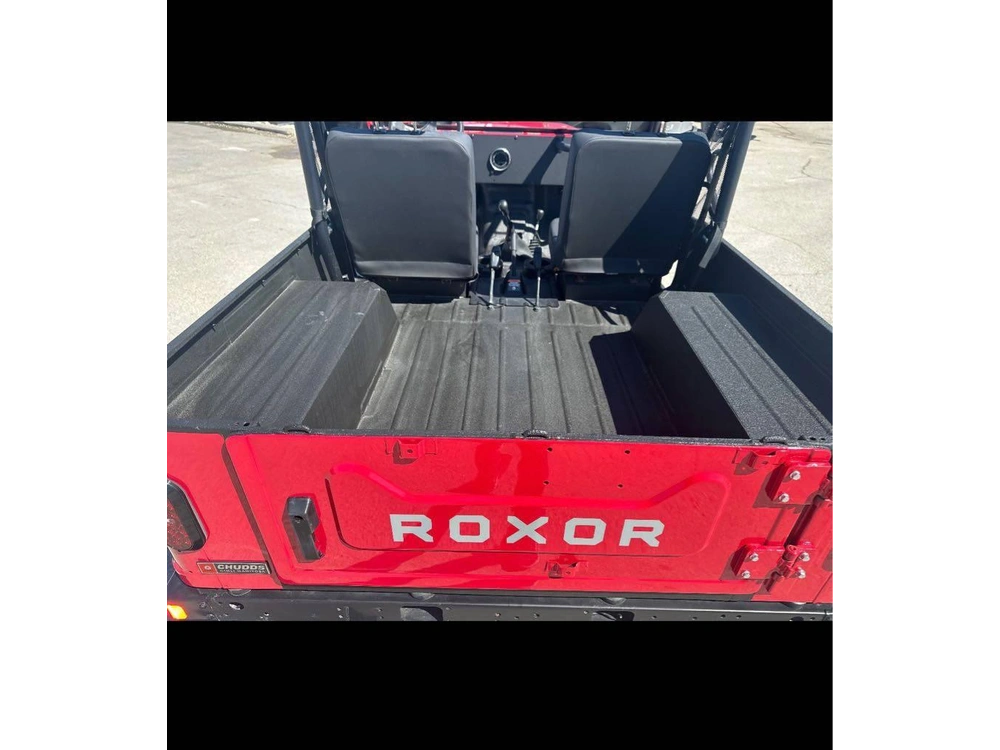

2024 Mahindra ROXOR HD BASE

Highlights* Steel Body
* Boxed Steel Frame
* Heavy-Duty Transmission, No Belts
* Horsepower: 55
* Displacement: 2730Cc (2.7 L / 165 In3)
* Ground Clearance: 9”/ 22.86 Cm
* Alternator: 90A
* Fuel Capacity: 16 Gal/ 60.5 L
* Warranty: 2-Year Limited

Electrical* Battery: 12V AGM
* Alternator: 90A
* Power Outlet: 12-volt
* Instrumentation: Digital Cluster
* Headlights: Halogen
* Taillights: Low-Profile LED

Engine* Type: Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
* Cylinders: 4
* Displacement: 2730cc (2.7L / 165 in³)
* Bore & Stroke: 88.9 X 101.6 mm
* Engine: 55 hp @ 2300 rpm (Max 2700 rpm)
* Torque: 144 lb-ft @ 1400-2200 rpm
* Compression Ratio: 18.7:1
* Cooling System: Liquid
* Fuel System: Mahindra Common Rail Diesel (mCRD)

Performance* Max Speed: 52 mph / 84 kmph
* Max Towing Speed: 15 mph/24 kmph
* Max Flat Towing Speed 3: 55 mph / 88 kmph

Chassis & Suspension* Chassis Type: Boxed Steel Frame
* Front Suspension: HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
* Rear Suspension: HD Leaf Spring w/ Shock Absorbers
* Shock Absorbers: Double Acting Hydraulic
* Tires: 235 / 70R16; All-Terrain
* Wheels: 16 X 7" Painted Steel

Drivetrain* Transmission: 5-speed manual
* Transfer Case: 2-speed manual
* Driveline: 2WD/4WD
* Full Floating Front Axle: 5.38:1
* Semi-Floating Rear Axle: 5.38:1

Safety* Protection: Roll-Over Protection System (ROPS)
* Seat Belts: (2) 3-point
* Brakes: Hydraulic Power
* Parking Brake: Mechanical
* Front Brake: 11” Disc / 27.94 cm
* Rear Brake: 11” Drum / 27.94 cm

Other info* Final Assembly: USA
* Warranty: 2-Year Limited Warranty

Dimensions & Capabilities* Wheelb.ase: 96 in. (244 cm)
* Base Curb Weight: 3075 lb. (1395 kg)
* Length: 144 in. (366 cm)
* Width: 60.7 in. (154 cm)
* Height: 75 in.(191 cm)
* Ground Clearance: 9 in. (22.86 cm)
* Fuel Capacity: 16 gal. (60.5 L)
* Payload Capacity: 1525 lb. (692 kg)
* Gvwr: 4600 lb. (2087 kg)
* Towing Capacity: 3500 lb. (1588 kg @ 15 Mph)
* Seating Capacity: 2
